2007-10-28

The pedestal is taking shape, one really gain from taking it easy.

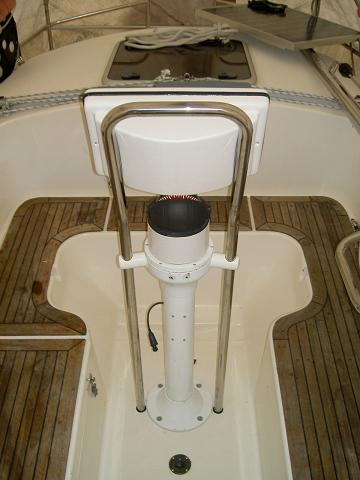

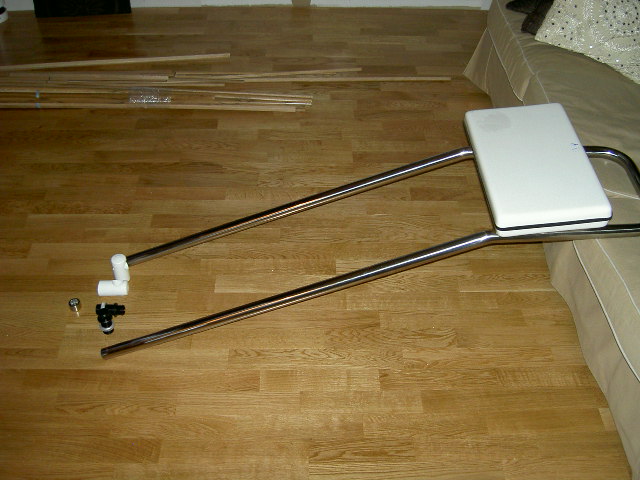

I cutted the S/S tube 4 inches, making the bend matching the compass folding cover.

Here is a link to my Manual for the Steering Pedestal Withlock Cobra

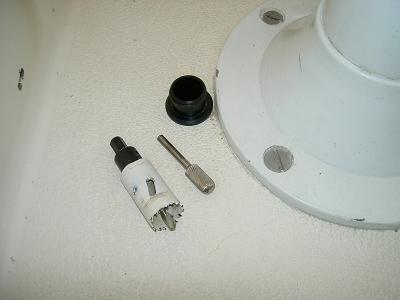

Tools needed.

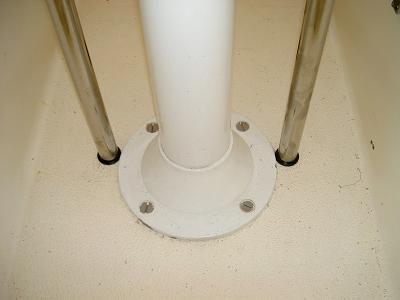

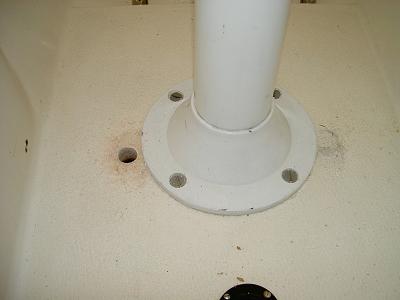

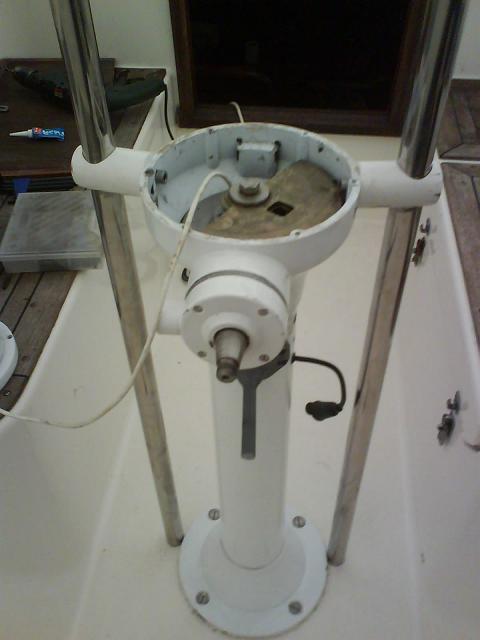

The floor mounts fitted and sealed with SIKA.

Six monting M4 screws should do it, large washer a must. Next step is to open-up for the cables. I will install a 12VDC receptacle (Flashlight, Cellphone, handheald VHF) at the bottom of the Navpod, this to limit the water ingress.

2007-10-27

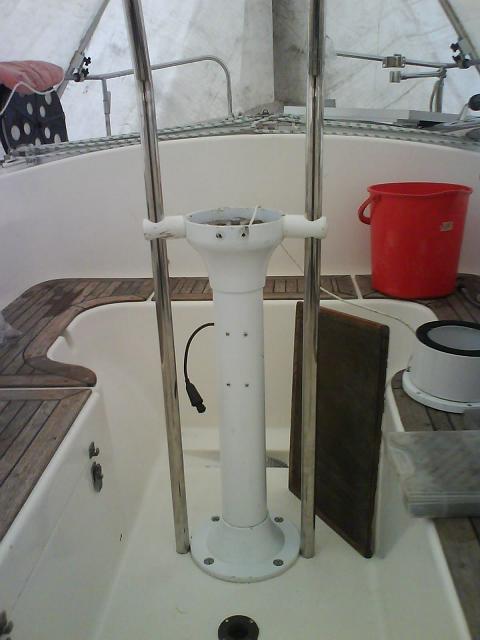

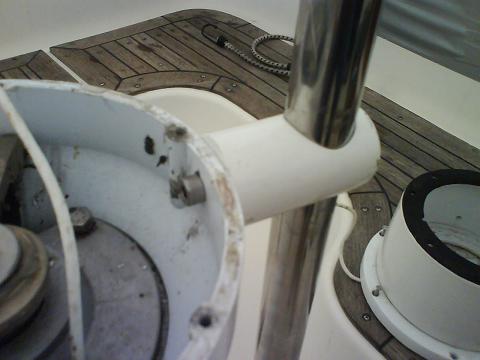

Did some partly-work, I try to be paitent to not try to complete a project in shortest time ever, instead I try to enjoy all these occassions when I find the time to work with the boat. Here are som pics taken with my mobile, poor quality. Better will come.

Later on 2007-09-23
I just can´t stop working with this installation ;)

--------------------------------------------------------------------------------
2007-09-23

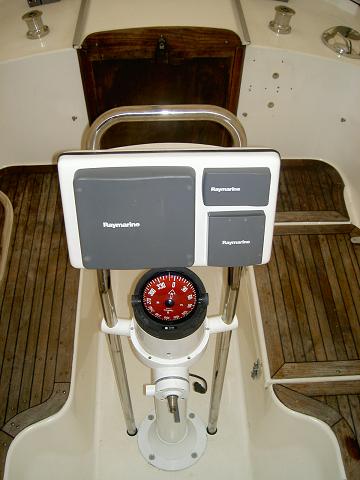

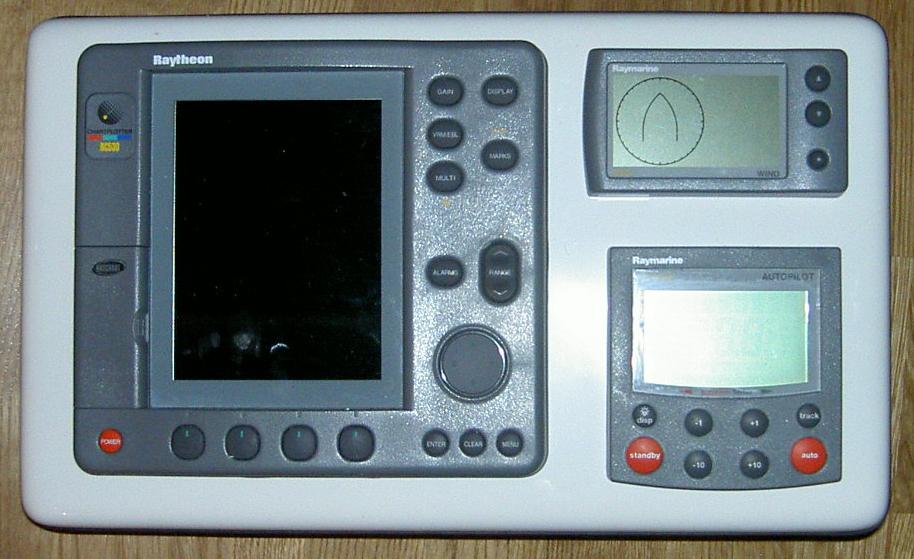

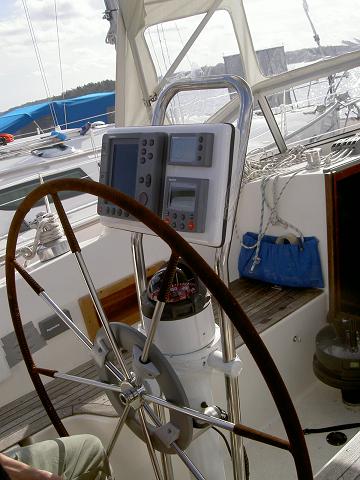

Installed the instruments into the Navpod, made some sort of prioritazing by installing the autopilot down-right for easy access with the right hand (righthanded).
Choosed to install the wind-display so I can save some info-boxes on the plotter for other info.

The ST40 Bidata showing STW, depth and watertemp (display not shown here) will be installed on the right side bulkhead (the lavatory-wall) so all crew-members can easily see depth and water-temp (for the kids).

------------------------------------------------------------------------------------------------------------

2007-09-15

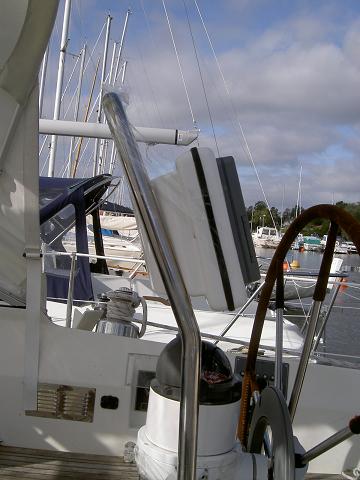

I just cant wait, with transparent tape and some cuoriousity.

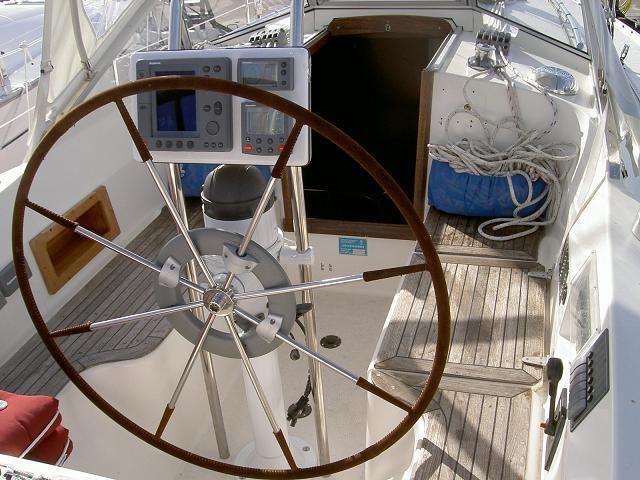

This is how its gonna look like.

-----------------------------------------------------------------------------------------------------------------------
Hässelby 2007-09-14

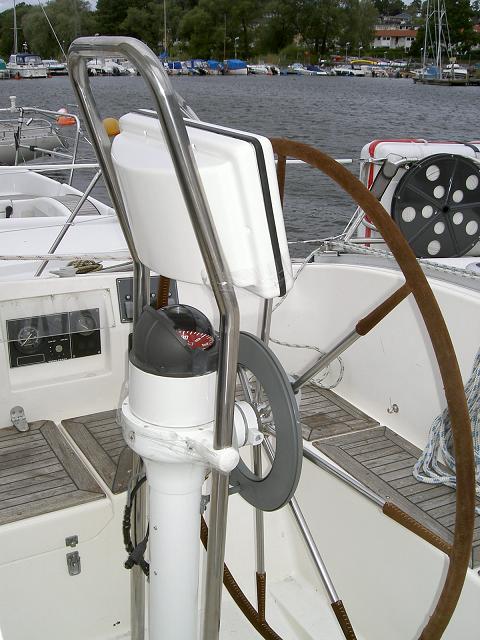

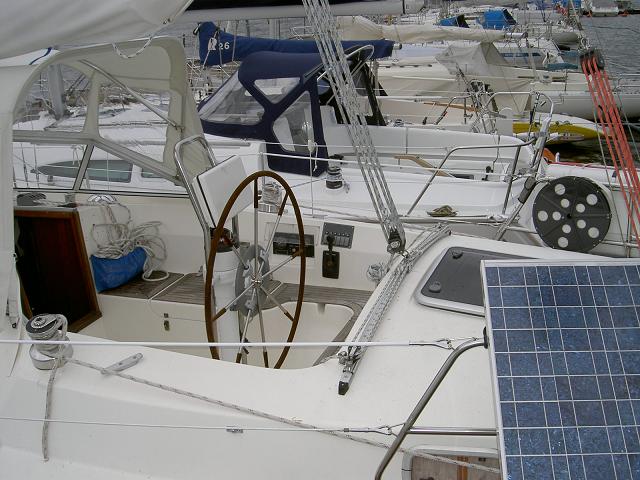

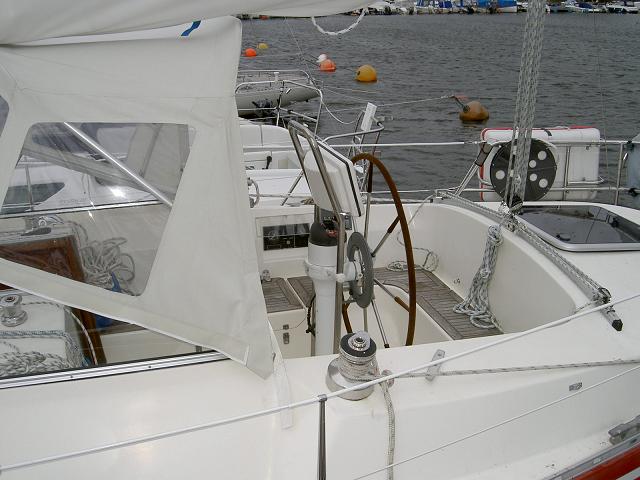

Yyyiiipee a new project. I am upgradng the old steering pedestal with a new grabrail together with an radar-pod.

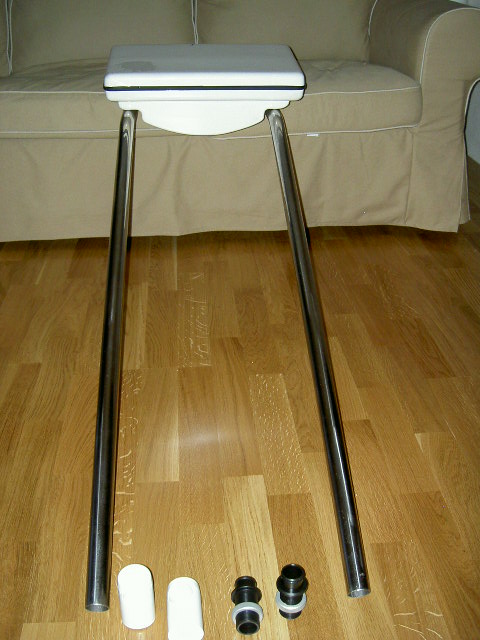

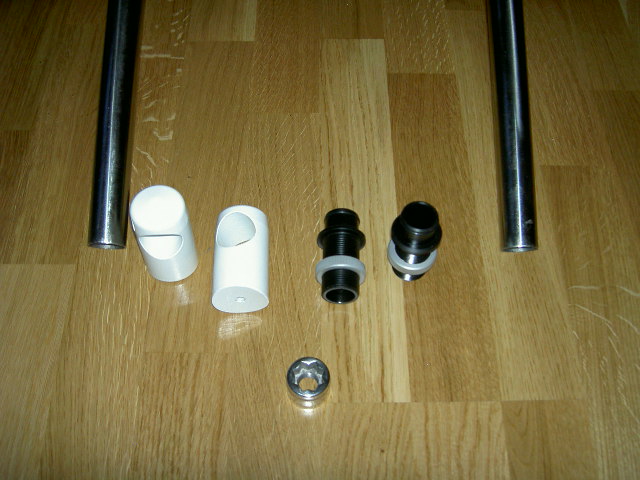

Items bought at Jefa I can really recomend them, a really great team.

Here´s some pictures, this job will be donme during the winter so welcome back in the spring ;-)

Take care.
